Samrath Engineering Works

Model NO. SEW R40 (40MM Single Double Auto Feed, Auto Lift)


Model NO. SEW R40 (40MM Single Double Auto Feed, Auto Lift)

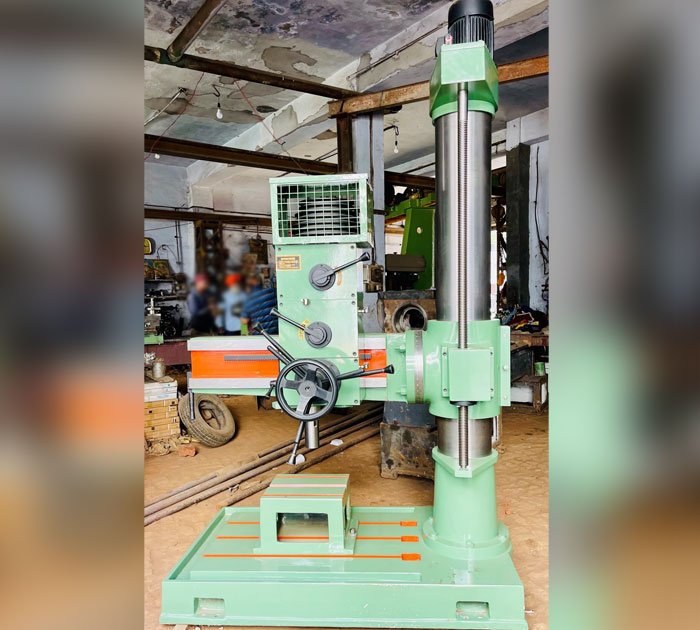

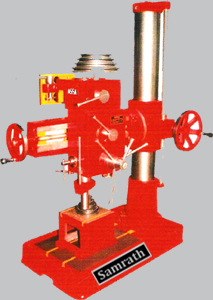

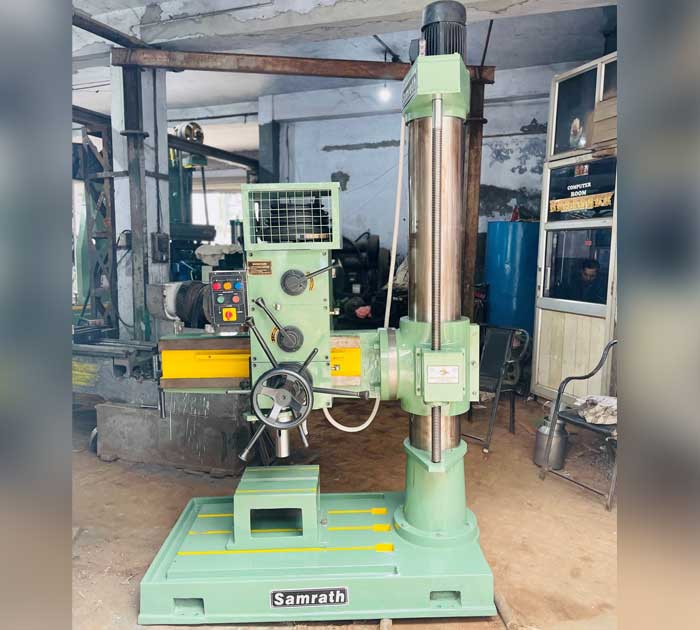

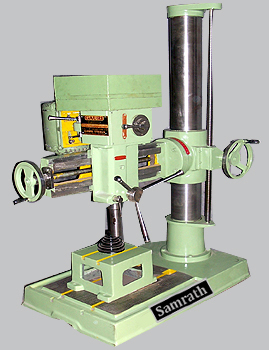

Universal Radial Drill Machines

Technical Specifications:

Drilling Capacity in Steel Material in (mm)	25mm	32mm	40mm	50mm
Max-distance from spindle to coloum in (inch)	25”	33”	39”	49”
Min-distance from spindle to coloum (inch)	10”	12”	16”	20”
Max-distance from spindle to base plate (inch)	32”	37”	45”	53”
Min-distance from spindle to base plate	0	0	0	0
Diameter of Coloum (inch)	6”	7½	9”	10”
No of spindle speeds	4 single 4 Double	4 single 4 Double	3single 3Double	3single 3Double
Range of spindle speeds	80/700 RPM	70/700 RPM	60/700 RPM	50/700 RPM
Working surface of base plate (inch)	18” X 30”	19”x24”	20” x32”	24” x37”
Travel of spindle Feed (inch)	6”	7”	9”	11”
Spindle more taper no	3	4	4	5
Arm net to any angle up to	90	90	90	90
Flour Space Regard (inch)	42”x25”	42”x25”	54”x29”	60”x29”
Approximate weight (Qntls)	7½Qntls.	8½ Qntls.	16 Qntls.	22 Qntls.
HP Required Moter.	1 HP	1½	2 Hp	3 HP
