MODEL SEW 14’/8'X6'

MODEL SEW 8’/3'X3'

MODEL SEW 16’/4'X4'

MODEL SEW 4-1/2’/3'X3'

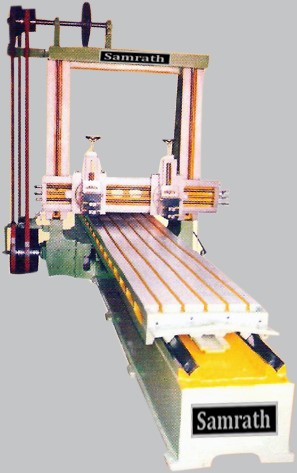

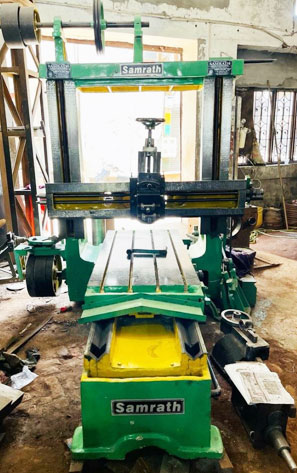

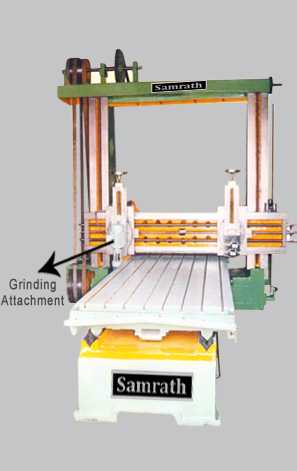

High Precision Heavy Duty Planers

Particulars	Ft.	4.1/2	6	6	8	8
	MM	1375	1830	1830	2440	2440
Legnth of Bed	Ft.	8	10	10	13	13
	MM	2435	3050	3050	3960	3960
Legnth of table	Ft.	5	6 1/2	6.3/4	9	9
	MM	1525	1980	2060	2590	2670
Stock of table	Ft.	5	6. 1/2	6.3	8.1/2	8.3/4
	MM	1525	1980	2060	2745	2745
Width of table	Inch	25	25	31	25	31
	MM	635	635	790	365	790
Planing Width	Inch	37	43	49	43	49
	MM	940	1095	1245	1095	1245
Height Under Cross Salid	Inc		40	49	40	49
	MM	865	1020	1245	1020	1245
Total Add Feed	Inch	9	9	12	9	12
	MM	865	1020	1245	1020	1245
Coss Solid Face 11.½	Inch	11.½	11.½	15	11.½	11.½
	MM	295	295	380	295	380
Pillar Face	Inch	8	8	10	8	10
	MM	205	205	250	205	250
V toV Center	Inch	16.½	16.½	20	16.½	20
	MM	420	420	510	420	520
No of Tool Post		1	1	1	1	2
H P Required		2	2	2	2	3
Appprox.Wt.in tls.		35	43	60	50	70

Particular	10 3050	10 3050	12 3660	12 3660	14 4270	16 4880	16 4880	18 5490	18 5490	20 6100	20 6100	22 6705	24 7315
Length of Bed	16 4875	16 4875	19 5790	19 5790	22 6705	25 7620	25 7620	28 8535	28 7535	31 9450	31 9450	22 6705	37 11275
Length of Table	10.3/4 3280	10.3/4 3280	12.3/4 3885	12.3/4 3885	14.3/4 4495	17 5185	17 5185	19 5795	19 5795	21 6400	21 6400	34 10360	25 7620
Stock of Table	11 3355	11 3355	13 3965	13 3965	15 4595	17 5185	17 5185	19 5795	19 5795	21 6400	21 6400	23 7010	25 7620
Width of Table	31 790	38 965	31 790	38 965	38 965	38 5185	44 1115	44 1115	50 1270	44 1115	50 1270	60 1525	60 1525
Planning Width	61 1550	61 1550	61 1550	61 1550	61 1550	61 1550	73 1855	73 1855	85 2160	73 1855	85 2160	97 2465	109 2770
Height Under Cross Salid	55 1400	61 1550	55 1400	61 1550	61 1550	61 1550	73 1855	73 1855	73 1855	73 1855	73 1855	73 1855	73 1855
Tool Add Feed	12 305	14 355	12 305	14 355	14 355	14 355	16 405	16 405	18 455	16 405	18 455	18 455	18 455
Coss Solid Face	15 380	17 430	15 380	17 430	17 430	17 430	19 480	19 480	21 530	19 480	21 530	23 580	25 630
Pillar Face Inch	11.1/2 250	10 290	11.1/2 250	11.1/2 290	11.1/2 290	13.1/2 290	13.1/2 345	13.1/2 345	13.1/2 345	13.1/2 345	13.1/2 345	13.1/2 345	15.1/2 385
V to V Centre	20 510	25 635	20 510	25 635	25 635	25 635	30 765	30 765	35 890	30 765	35 890	40 1015	40 1015
No of Tool Post	2	2	2	2	2	2	2	2	2	2	2	2	2
H P Required	3	5	5	5	5	5	7.5	7.5	7.5	10	10	10	10
Approx. Wt. in Qtls	70	102	95	115	130	145	158	180	200	220	240	260	280
