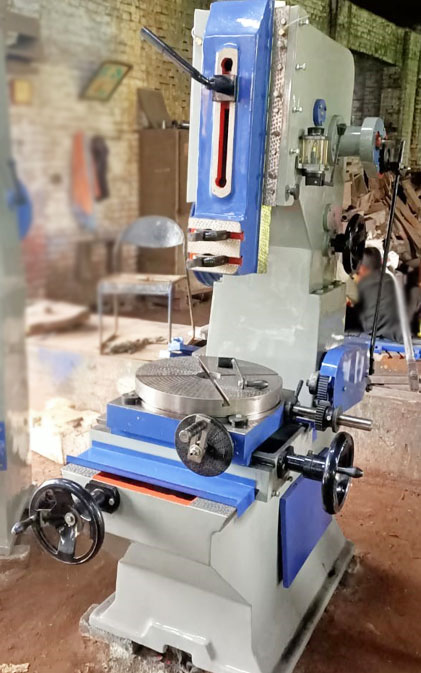

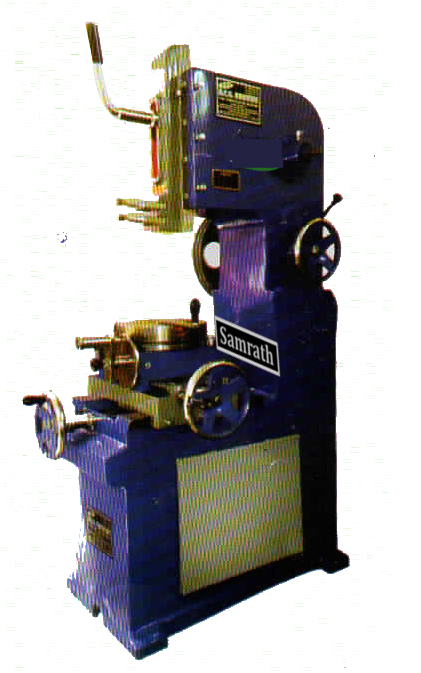

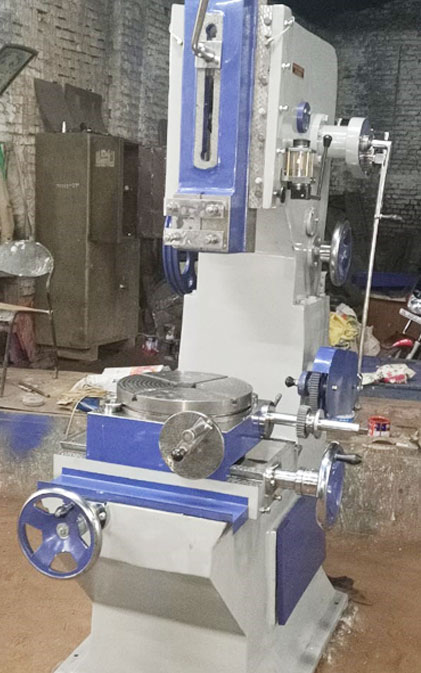

Slotter Machine

1. That it does the jobs of both machines as well as that of slotting machine and milling machine at a time giving maximum accuracy and production.
2. It is most useful for cutting keys in all types of Auto and workshop machinery parts.
3. It is also useful for cutting outside and inside splying.
4. There is a special arrangement of Endmill cutter by which all types of keys are cut in the shafting of all types os workshop jobs.
5. It is also useful for cutting spur teeth in all types of workshop and auto parts job.
6. This machine is most suitable and useful for cutting splying of MERCERY TRUCJ hubs and axels.
7. This machine reduces the consumption of electric energy by doing the work of two seperate machines at a time.
8. It reduces the area occupied by the machine in one workshop.

9. Should you be interested in Slotomill machine, thus we are enclosing here with it/s technical data along with the price of the machine.



Specification	Sizes	Sizes	Sizes	Sizes
Maximum Length of Stroke	8’ Light	10” Heavy	10"	12” Heavy"
Length of Barn	20”	30”	30"	40"
Width of Barm	6"	8"	8"	9"
Length of Ram Bearing	14”	20 "	22"	26"
No. of Speeds to Ram by Gear Box	2	2”	4 "	4"
Maximum Diameter of Work Admitted	20"	32”	36"	48"
Maximum Height of Work Admitted	7”	9”	11"	15"
Longitudinal Traverse of Table	9"	15”	18"	24"
Transverse Traverese of Table	10”	12”	15"	18"
Diameter of Circular Table	12”	15’	18"	24"
Horse Power Required	1H.P.	2 H.P.	3 H.P.	5 H.P.
Approx. Weiht of Casting	13 Qnt.	15 Qnt.	25 Qnt.	30 Qnt.
Dividing Arrangement	Yes	Yes	Yes	Yes
Slottomill Table Size	30” x 8”	30" x 8 1/2"	36" x 8 1/2"	48" X 11"
Centre of Dividing Head	5”	5"	6"	5"
